Extra Large Clip – Auto Lock
Extra Large Clip – Auto Lock
Material: Grade 316 Stainless Steel, Aluminum or Black Coated Carbon Steel
Retail and bulk packaging available
The Extra Large Clip – Auto Lock is available in a 1/2″ size and made from aluminum, grade 316 stainless steel or black coated carbon steel. This clip features a heavy duty lock. The break load is approximately three times the working load limit.
Specifications
ALL DIMENSIONS ARE NOMINAL (+/- 3%) AND ARE SUBJECT TO CHANGE WITHOUT NOTICE.

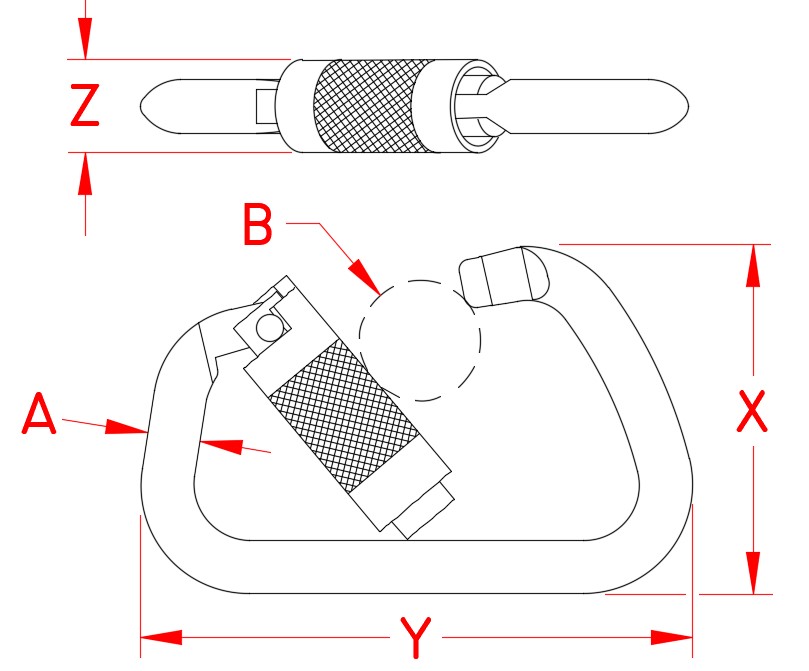

| ITEM | A (size) | B | X | Y | Z | WLL (lb) | WT (lb) |
|---|---|---|---|---|---|---|---|
| ALUMINUM (W/ BLACK FIBERGLASS LOCK) | |||||||
| A0147-0013 | 1/2″ | 1.06″ | 3.05″ | 4.50″ | 0.71″ | 2,200 | 0.20 |
| 316 STAINLESS STEEL (W/ NICKEL BRONZE LOCK) | |||||||
| S0147-0013 | 1/2″ | 1.06″ | 3.05″ | 4.50″ | 0.71″ | 2,500 | 0.58 |
| BLACK COATED CARBON STEEL (W/ BRONZE LOCK) | |||||||
| Z0147-0013 | 1/2″ | 1.06″ | 3.05″ | 4.50″ | 0.71″ | 3,500 | 0.58 |
